Produktnummer:
90MB0WI0-M0EAY0_NEU
Hersteller:
ASUS
Hersteller-Nr.:
90MB0WI0-M0EAY0
EAN:
4712900906608
Gewicht:
0.666 kg
Breite:
185 mm

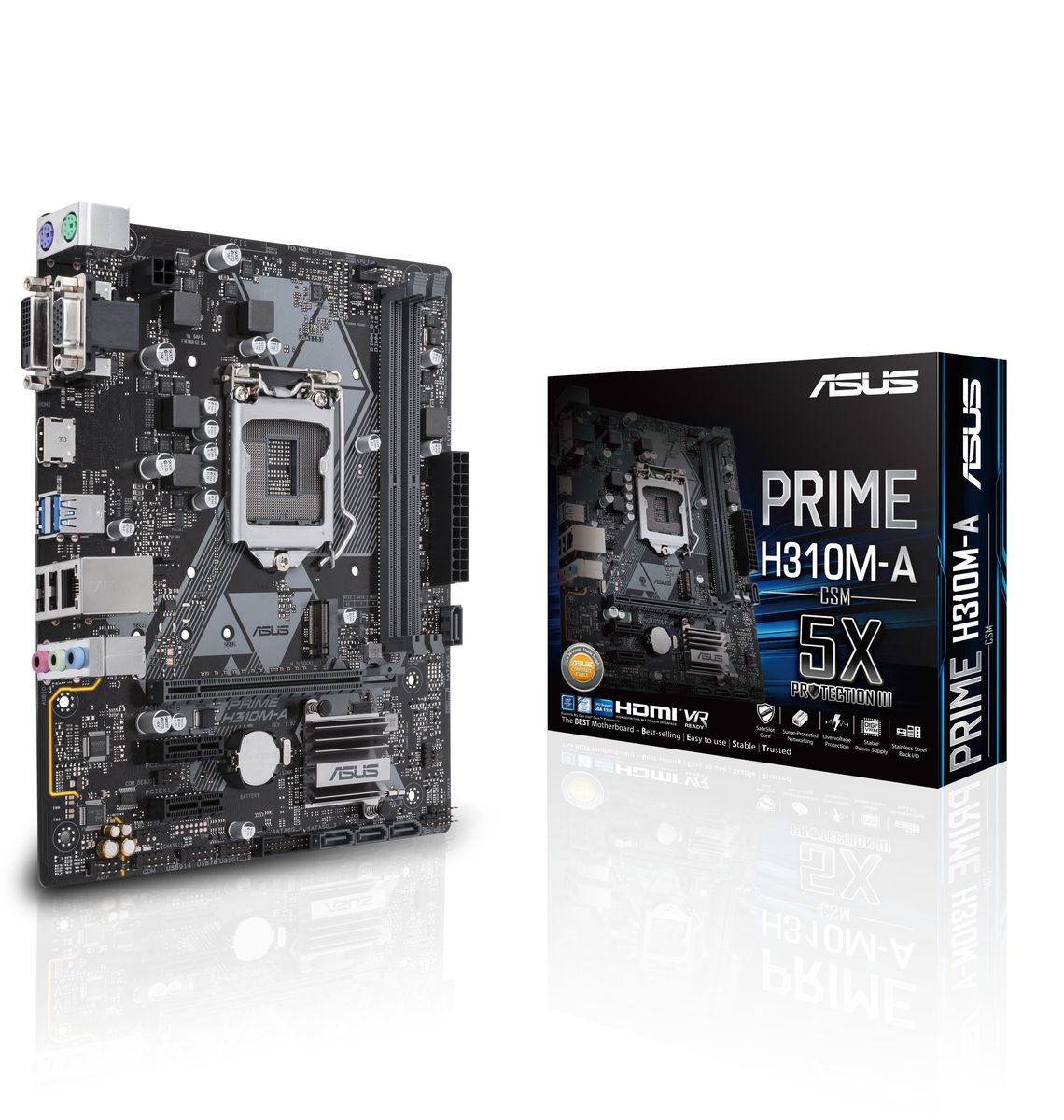

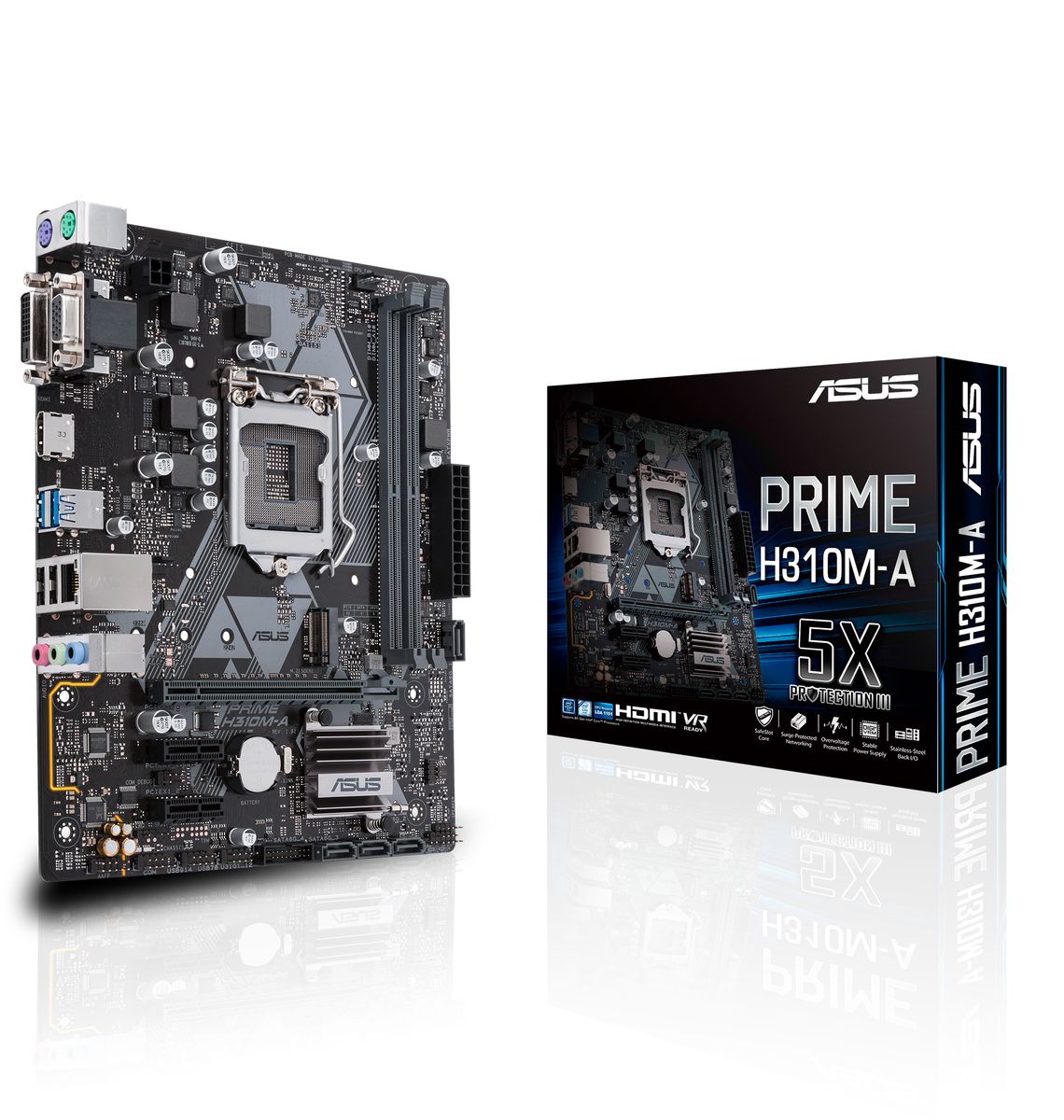

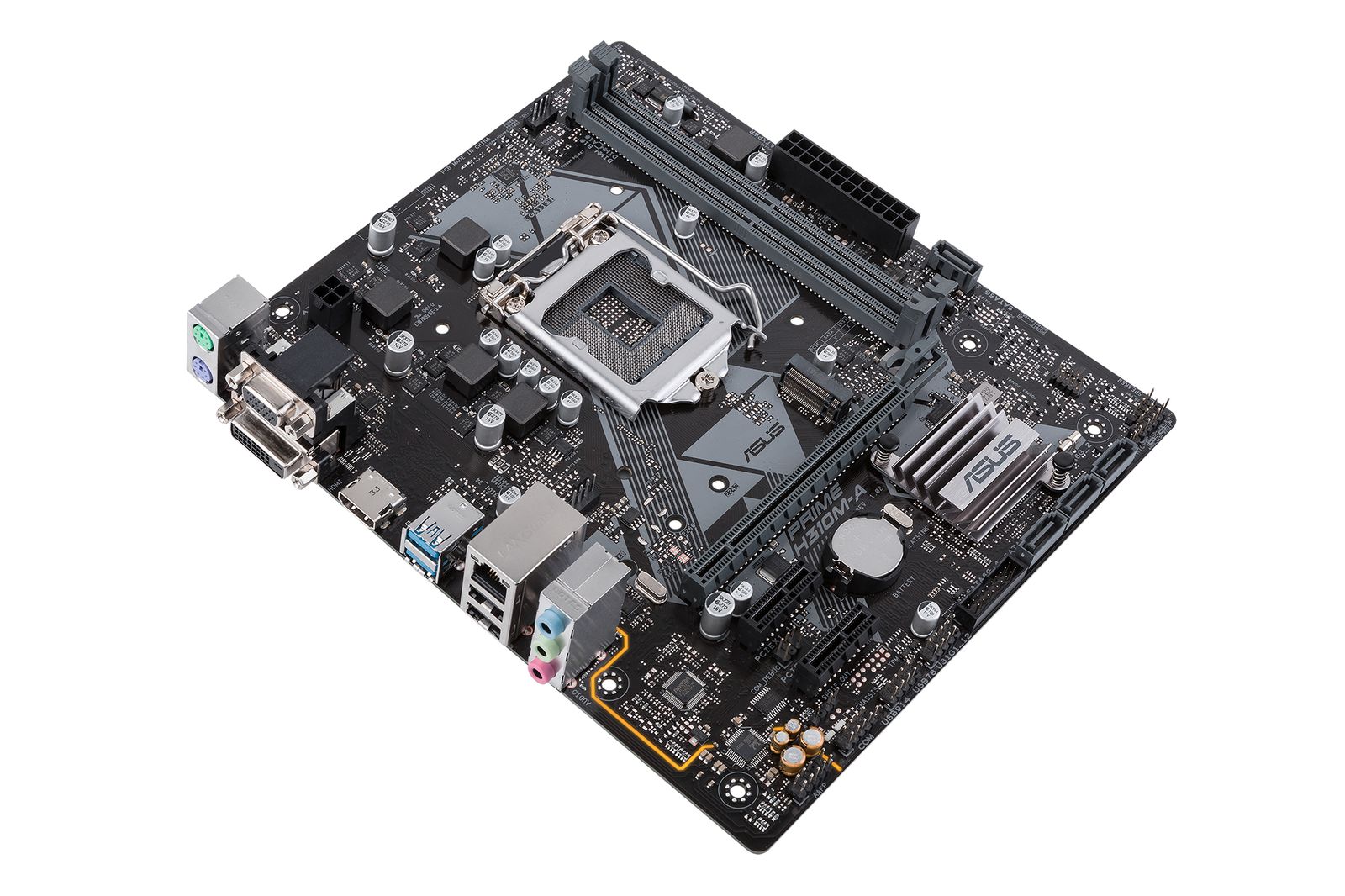

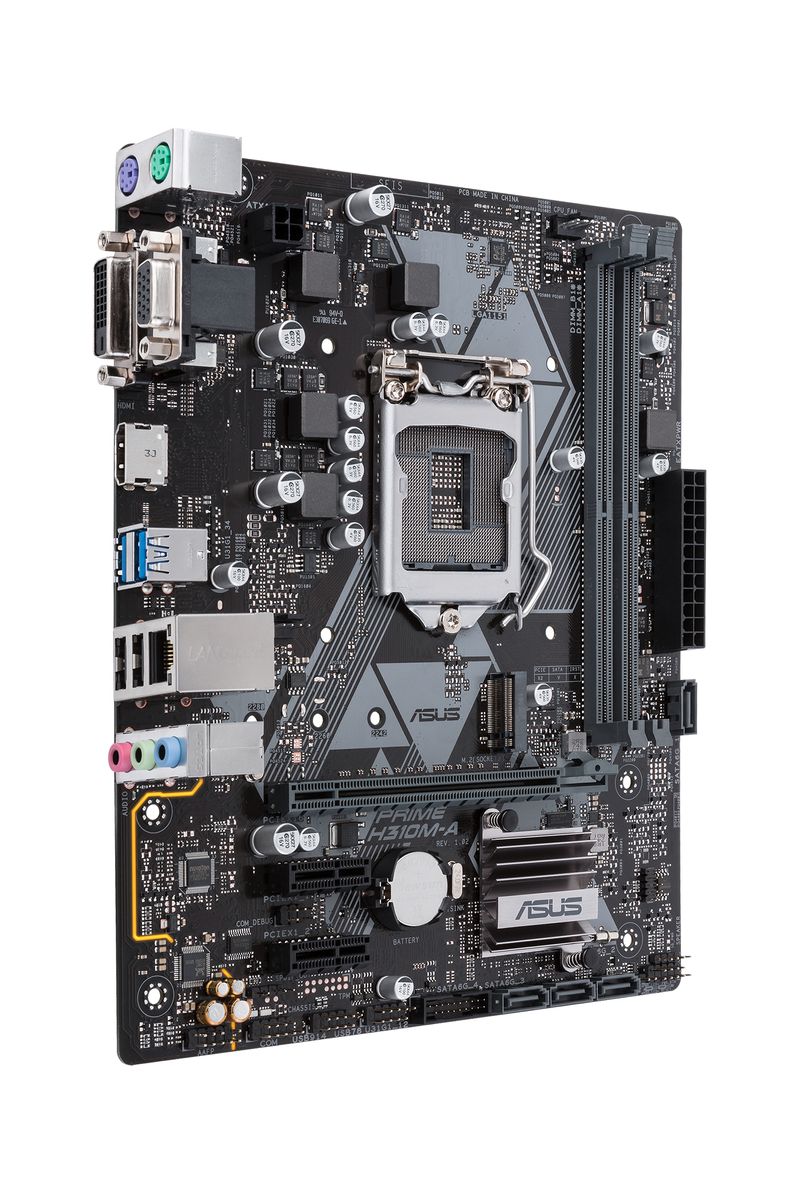

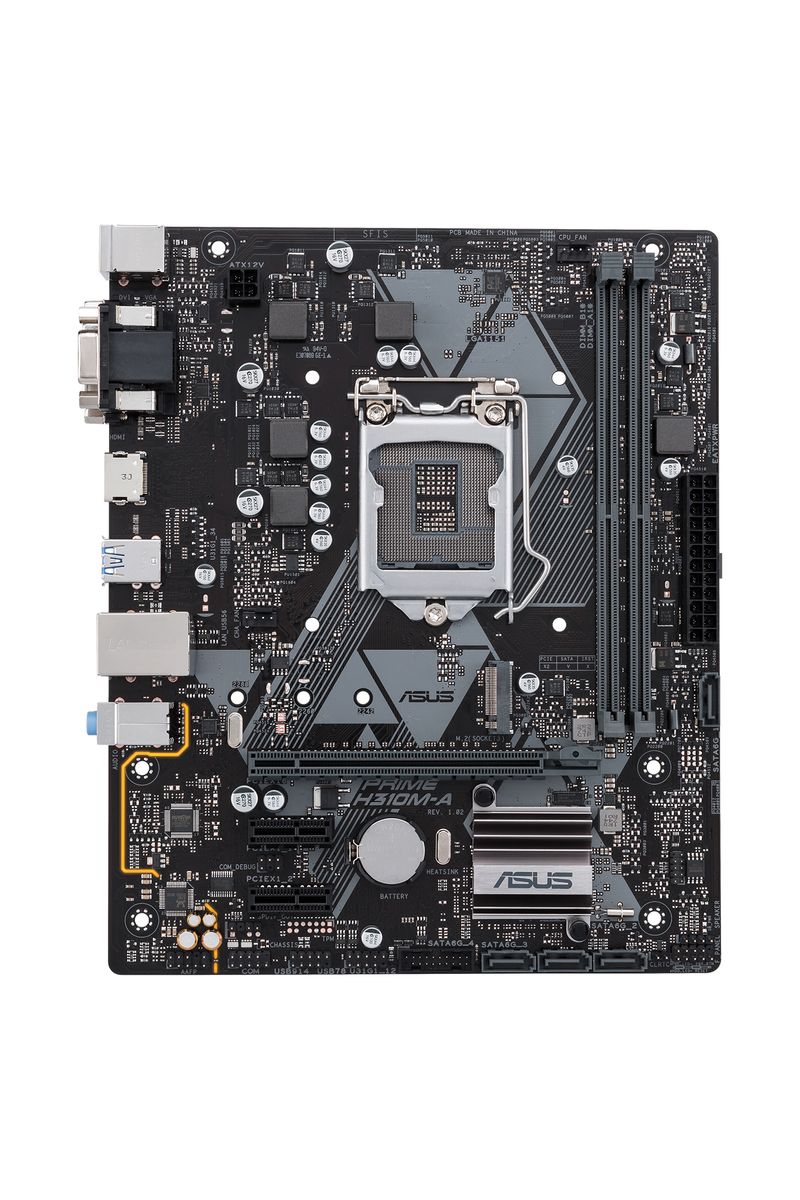

Produktinformationen "ASUS PRIME H310M-A Intel® H310 LGA 1151 (Socket H4) micro ATX"
ASUS PRIME H310M-A. Prozessorhersteller: Intel, Prozessorsockel: LGA 1151 (Socket H4), Kompatible Prozessoren: Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium®. Unterstützte Arbeitsspeicher: DDR4-SDRAM, RAM-Speicher maximal: 32 GB, Arbeitsspeicher Typ: DIMM. Unterstützte Speicherlaufwerk-Schnittstellen: M.2,SATA III. Maximale Auflösung: 4096 x 2160 Pixel. Ethernet Schnittstellen Typ: Gigabit Ethernet, LAN-Controller: Realtek RTL8111H
Prozessor | |
Prozessorhersteller | Intel |
Prozessorsockel | LGA 1151 (Socket H4) |
Kompatible Prozessoren | Intel® Celeron®, Intel® Core™ i3, Intel Core i5, Intel Core i7, Intel® Pentium® |
Intel® Core i3/i5/i7/i9 Serie | i3-8xxx,i5-8xxx,i7-8xxx |
Speicher | |
Unterstützte Arbeitsspeicher | DDR4-SDRAM |
Anzahl der Speichersteckplätze | 2 |
RAM-Speicher maximal | 32 GB |
Arbeitsspeicher Typ | DIMM |
Speicherkanäle | Dual-channel |
Ohne ECC | Ja |
Unterstützte Arbeitsspeichergeschwindigkeit | 2133,2400,2666 MHz |
Unbuffered Speicher | Ja |
Gewicht und Abmessungen | |
Breite | 226 mm |
Tiefe | 185 mm |
Netzwerk | |
Eingebauter Ethernet-Anschluss | Ja |
Ethernet Schnittstellen Typ | Gigabit Ethernet |
LAN-Controller | Realtek RTL8111H |
Interne E/A-Anschlüsse | |
Anzahl USB 2.0 Schnittstellen | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Anschlüsse | 1 |
SATA III Anschlüsse | 4 |
Front Panel Audiostecker | Ja |
ATX Stromstecker (24-pol.) | Ja |
Zahl der EATX Energie Stecker | 1 |
CPU Ventilatorstecker | Ja |
Zahl der Chassisventilatorstecker | 1 |
Zahl der COM Stecker | 1 |

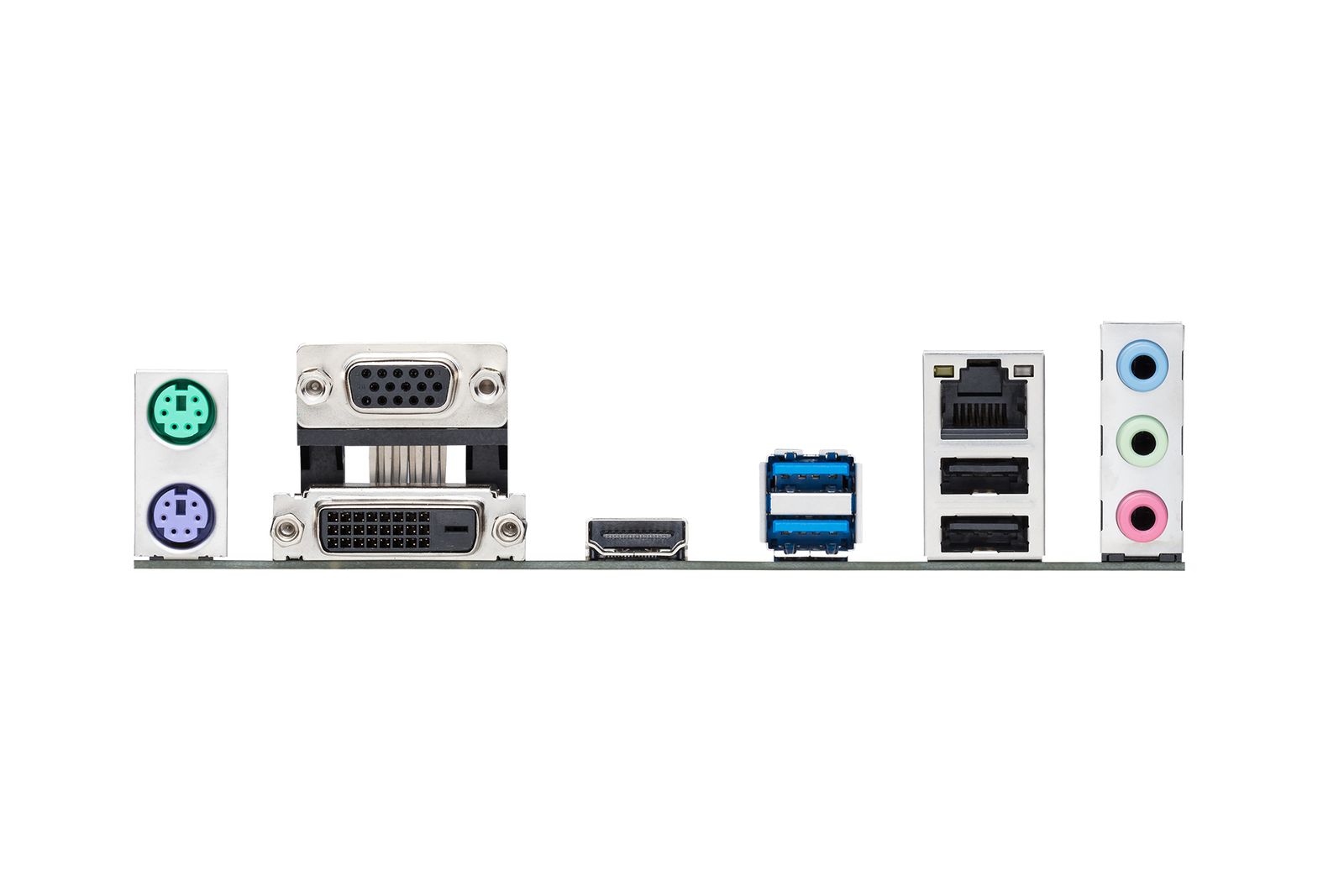

E/A-Anschlüsse auf der Rückseite | |
Anzahl USB 2.0 Anschlüsse | 2 |
Anzahl USB 3.2 Gen 1 (3.1 Gen 1) Typ-A Ports | 2 |
Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
Anzahl VGA (D-Sub) Anschlüsse | 1 |
Anzahl HDMI-Anschlüsse | 1 |
Anzahl DVI-D-Anschlüsse | 1 |
Anzahl PS/2 Anschlüsse | 2 |
Speicher-Controller | |
Unterstützte Speicherlaufwerk-Schnittstellen | M.2,SATA III |
Erweiterungssteckplätze | |
PCI-Express x1 (Gen 3.x)-Anschlüsse | 2 |
PCI-Express x16 (Gen 3.x)-Anschlüsse | 1 |
Anzahl der M.2 (M)-Steckplätze | 1 |
BIOS | |
BIOS-Typ | UEFI AMI |
BIOS-Speichergröße | 16 Mbit |
ACPI-Version | 6.1 |
Clear CMOS-Jumper | Ja |
Grafik | |
Maximale Auflösung | 4096 x 2160 Pixel |
Prozessor Besonderheiten | |
Intel® Clear Video HD Technology für (Intel® CVT HD) | Ja |
Intel® Turbo-Boost-Technologie | 2.0 |
Intel® Extreme Memory Profile (XMP) | Ja |
Intel® Quick-Sync-Video-Technik | Ja |
Intel® Insider™ | Ja |
Intel® InTru™ 3D Technologie | Ja |
Merkmale | |
Komponente für | PC |
Motherboardformfaktor | micro ATX |
Motherboard Chipsatz Familie | Intel |
Motherboard Chipsatz | Intel® H310 |
Audio Kanäle | 7.1 Kanäle |
Energiequelle | ATX |
Unterstützt Windows-Betriebssysteme | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64 |
